格蘭泰勒偏振器
|
| 材料： | a -BBO, Calcite or YVO4 |

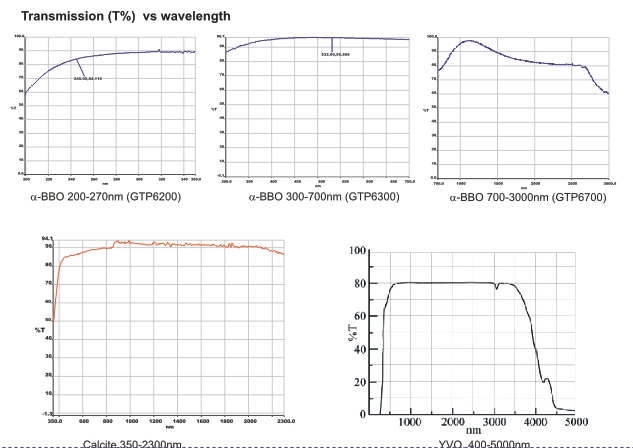

| 波長范圍： | a -BBO: 200-3500 nm, Calcite: 350-2300 nm, YVO4: 400-5000 nm |
| 消光比： | Calcite:<5x10-5 ; a -BBO:<5x10 -6 ; YVO4:<5x10 -6 |
| 并行性： | <1 arc Min |
| 表面質量： | 20-10 |
| 光束偏差： | 典型值: <3 min, 高精度: <3" |
| 波前失真： | l/4@633nm |
| 損壞閾值： | >200 MW/cm2 |
| 涂層： | Single Layer MgF2 |
| 安裝： | Black Anodized Aluminium |

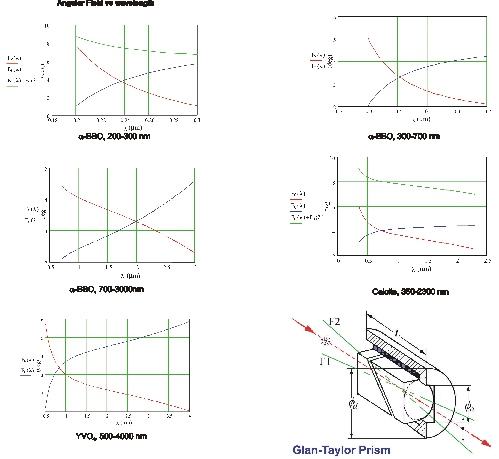

| Part No. | Wavelength Rang(nm) | Extinction Ratio | Angular Field(°) | C.A.f a (mm) | O.D. f d (mm) | L±0.1(mm) |
| GTP6206 | 200-270(Single Layer MgF2)(Coating@245nm) | <5x10 -5 | >6.0 | 5 | 15 | 8 |
| GTP6208 | 7 | 25.4 | 10 | |||
| GTP6210 | 9 | 25.4 | 11 | |||
| GTP6215 | 13.5 | 30 | 15 | |||
| GTP6220 | 18 | 38 | 19 | |||
| GTP6306 | 300-700(Single Layer MgF2)(Coating@532nm) | <5x10 -5 | >6.0 | 5 | 15 | 8 |
| GTP6308 | 7 | 25.4 | 10 | |||
| GTP6310 | 9 | 25.4 | 11 | |||
| GTP6315 | 13.5 | 30 | 15 | |||
| GTP6320 | 18 | 38 | 19 | |||
| GTP6706 | 700-3000(Single Layer MgF2)(Coating@1064nm) | <5x10-6 | >6.0 | 5 | 15 | 8 |
| GTP6708 | 7 | 25.4 | 10 | |||
| GTP6710 | 9 | 25.4 | 11 | |||
| GTP6715 | 13.5 | 30 | 15 | |||
| GTP6720 | 18 | 38 | 19 |
| Part No. | Wavelength Rang(nm) | Extinction Ratio | Angular Field(°) | C.A. f a (mm) | O.D. f d (mm) | L±0.1(mm) |
| GTP7006 | 350-2300(Single Layer MgF2)(Coating@1064nm) | <5x10-5 | >7.7° | 5 | 15 | 8 |
| GTP7008 | 7 | 25.4 | 10 | |||
| GTP7010 | 9 | 25.4 | 11 | |||
| GTP7015 | 13.5 | 30 | 15 | |||
| GTP7020 | 18 | 38 | 19 |
| Part No. | Wavelength Rang(nm) | Extinction Ratio | Angular Field(°) | C.A. fa (mm) | O.D. f d (mm) | L±0.1(mm) |
| GTP8006 | 500-4000(Single Layer MgF2)(Coating@1300nm) | <5x10-6 | <=6.5 | 5 | 15 | 7 |
| GTP8008 | 7 | 25.4 | 9 | |||
| GTP8010 | 9 | 25.4 | 10 | |||
| GTP8015 | 13.5 | 30 | 12 | |||
| GTP8020 | 18 | 38 | 15 |
