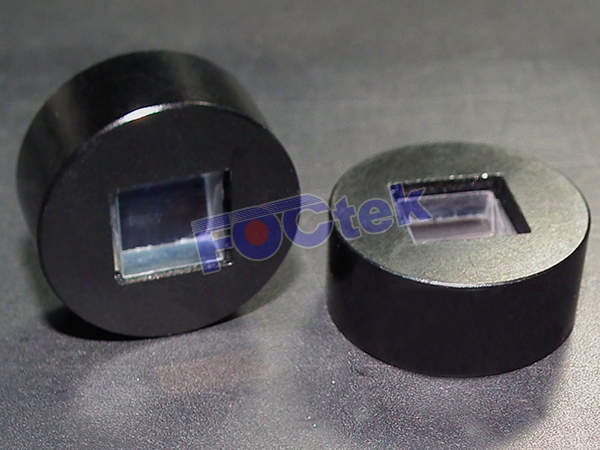

洛匈偏振器
| 材料： | α-BBO, MgF2, YVO4, Quartz | |
| 波長范圍： | α-BBO:190-3500 nm, MgF2:130-6000nm,YVO4:400-4000nm,Quartz:200-2300nm | |
| 消光比： | Quartz:<5x10 -5 ;α-BBO, YVO4:<5x10 -6; MgF2:<5x10 -6 | |
| 并行性： | <1 arc Min |  |
| 表面質量： | 20-10 | |
| 光束偏差： | 典型值: <3', 高精度: <3" | |
| 波前失真： | λ/4@633nm | |
| 損壞閾值： | >500 MW/cm 2 | |
| 涂層： | Single Layer MgF2 | |
| 安裝： | Black Anodized Aluminium |
|
|
|
RCP5000
|
RCP6000
|
RCP8000
|
RCP9000
|
|
130
|
1.40
|
|
|
|
|
150
|
1.62
|
|
|
|
|
170
|
1.59
|
|
|
|
|
190
|
1.55
|
13.93
|
|
|
|
200
|
1.53
|
12.78
|
|
1.46
|
|
266
|
1.44
|
9.82
|
|
1.23
|
|
355
|
1.39
|
8.80
|
|
1.12
|
|
400
|
1.37
|
8.58
|
13.09
|
1.09
|
|
532
|
1.35
|
8.25
|
11.45
|
1.04
|
|
633
|
1.34
|
8.14
|
10.93
|
1.03
|
|
808
|
1.33
|
8.05
|
10.50
|
1.01
|
|
980
|
1.32
|
8.02
|
10.29
|
1.00
|
|
1064
|
1.32
|
8.00
|
10.22
|
1.00
|
|
1319
|
1.31
|
8.01
|
10.09
|
1.00
|
|
1550
|
1.30
|
8.03
|
10.03
|
1.00
|
|
2000
|
1.28
|
8.11
|
9.96
|
1.00
|
|
2500
|
1.25
|
8.23
|
9.91
|
|
|
3000
|
1.22
|
8.39
|
9.88
|
|
|
4000
|
1.13
|
8.83
|
9.83
|
|
|
5000
|
1.01
|
9.43
|
9.79
|
|
|
6000
|
0.85
|
|
|
|
| Part No. | Wavelength Range(nm) | Extinction Ratio | Separation Angle(°) | C.A. f a (mm) | O.D. f d (mm) | L±0.1(mm) |
| RCP6006 | 190-3500(Single Layer MgF2)(Coating@800nm) | <5x10 -6 | 8.0°-14°8.05°@800nm | 5 | 15 | 8 |
| RCP6008 | 7 | 25.4 | 11 | |||
| RCP6010 | 9 | 25.4 | 13 | |||
| RCP6015 | 13.5 | 30 | 18 | |||
| RCP6020 | 18 | 38 | 22 |
| Part No. | Wavelength Range(nm) | Extinction Ratio | Separation Angle(°) | C.A. f a (mm) | O.D. f d (mm) | L±0.1(mm) |
| RCP9006 | 200~2300（Single Layer MgF2）(Coating@1064nm) | <4x10 -5 | 1.0°-1.5°1°@1064nm | 5 | 15 | 16 |
| RCP9008 | 7 | 25.4 | 20 | |||
| RCP9010 | 9 | 25.4 | 25 | |||
| RCP9015 | 13.5 | 30 | 35 | |||
| RCP9020 | 18 | 38 | 45 |
| Part No. | Wavelength Range(nm) | Extinction Ratio | Separation Angle(°) | C.A. f a (mm) | O.D. f d (mm) | L±0.1(mm) |
| RCP8006 | 400~4000(Single LayerMgF2)(Coating@1550nm) | <4x10 -5 | 9.8°-13.0°10°@1064nm | 5 | 15 | 8 |
| RCP8008 | 7 | 25.4 | 11 | |||
| RCP8010 | 9 | 25.4 | 13 | |||
| RCP8015 | 13.5 | 30 | 18 | |||
| RCP8020 | 18 | 38 | 22 |
| Part No. | Wavelength Range(nm) | Extinction Ratio | Separation Angle(°) | C.A. Φa (mm) | O.D. Φ d (mm) | L±0.1(mm) |
| RCP5006 | 130~6000(Uncoating|) | <5x10 -5 | 1.35°@532 nm | 5 | 15 | 16 |
| RCP5008 | 7 | 25.4 | 20 | |||
| RCP5010 | 9 | 25.4 | 25 | |||
| RCP5015 | 13.5 | 30 | 35 | |||
| RCP5020 | 18 | 38 | 45 |
